  •   CCD HD jutiklis
      CCD HD jutiklis 1

    CCD HD jutiklis

    Kodas: 3B Scientific 1018820
    Pasiteirauti apie prekę
    Kaina 104568 € su PVM

    Prekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Į krepšelį
    Gamintojas
    3B Scientific
    Pristatymo laikas
    3-6 savaitės

  • Informacija apie prekę
    Prekės kodas 1018820 [U22058]
    Svoris 1.023 kg

    CCD HD Sensor

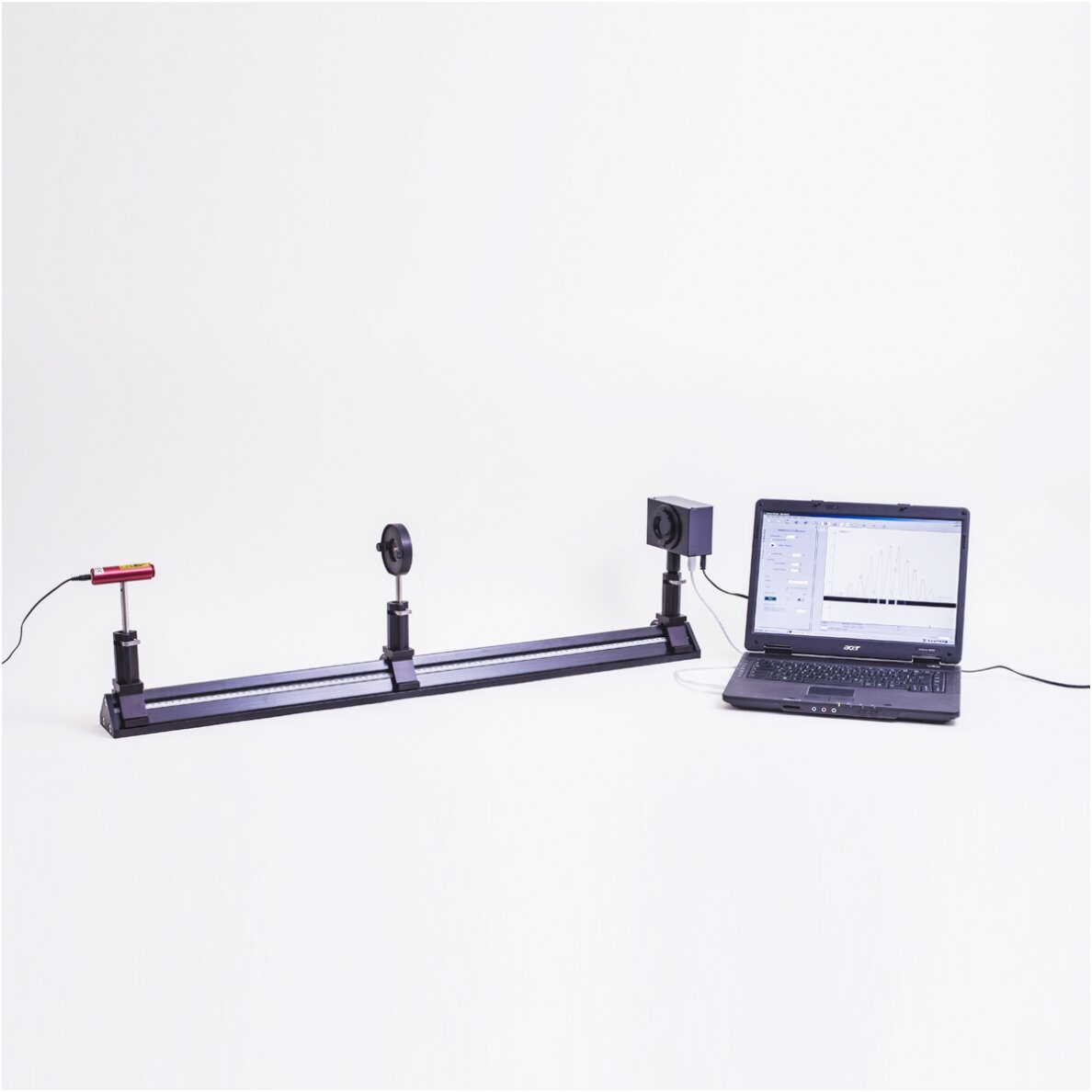

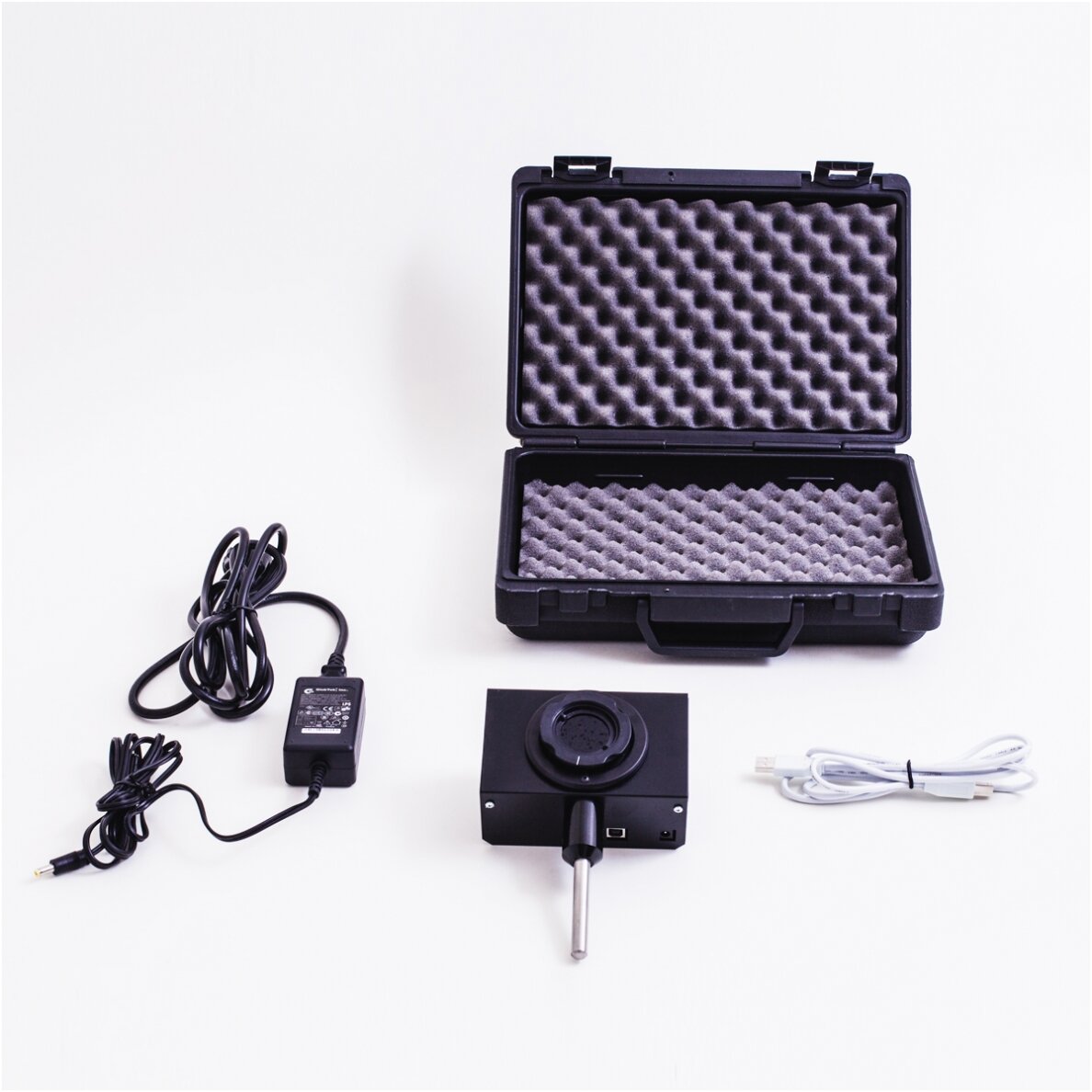

    Optical sensor for investigating distribution of light intensity. Particularly well suited for the investigation of light diffraction at single slits, multiple slits or diffraction gratings. User-friendly measurement and evaluation software enable simultaneous recording and analysis in real-time. The built-in software for Windows 2000/XP/Vista/7/8 32- and 64-bit versions starts running as soon as the sensor is connected to the computer via a USB cable. Includes attenuating filter, stand rod and plug-in power supply.

    Software:
    Data acquisition possible in two modes:
    Intensity as a function of location, e.g. for diffraction and interference.
    Intensity in a region as a function of time.
    Pointer mode, model calculation mode, spreadsheet and report modes are all available for the purposes of evaluation.

    Sensor:                                 Toshiba 3648 pixel SWB
    Resolution:                           16 bits
    Integration time:                   0.1 ms to 6.5 s
    Filter attachment:                Clix (magnetic ring)
    Sensitive surface of sensor:         8 µm x 30 mm
    Interface:                               USB 2.0



    Experiment Topics:

    ·         Measurement and calculations for models of diffraction at a single slit, multiple slit and diffraction gratings.
    ·         Interference.
    ·         Fluctuations in intensity


    Advantages:

    ·         Plug & play: no software installation or drivers required.
    ·         Measurement and evaluation in real-time.
    ·         Simple and practical software with built-in wizards and powerful evaluation function.
    ·         Spectra of high quality and signal stability
    ·         Low noise
    ·         High resolution
    ·         Suitable for measuring very slight fluctuations in intensity with very high precision.
    Measurement of second-order diffraction without saturation of the first order.
