Elektrochemijos priemonių rinkinys
Kodas: 3B Scientific 1002719Kaina 99099 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1002719 [U11110] Svoris2.4 kg Išmatavimai 42.2 x 31.0 x 17.0 cm Ženklas 3B Scientific Electrochemistry Kit
Experiment Topics:
- Measurement at galvanic voltage sources
- Daniell cell, series and parallel circuits
- Electrochemical potentials (voltage sequence)
- Determination of the standard potentials of different metals and non metals
- How potentials depend on concentration
- How potentials depend on temperature
- Charge and discharge of a steel accumulator
- Leclanché cell
-
Measurement of pH values

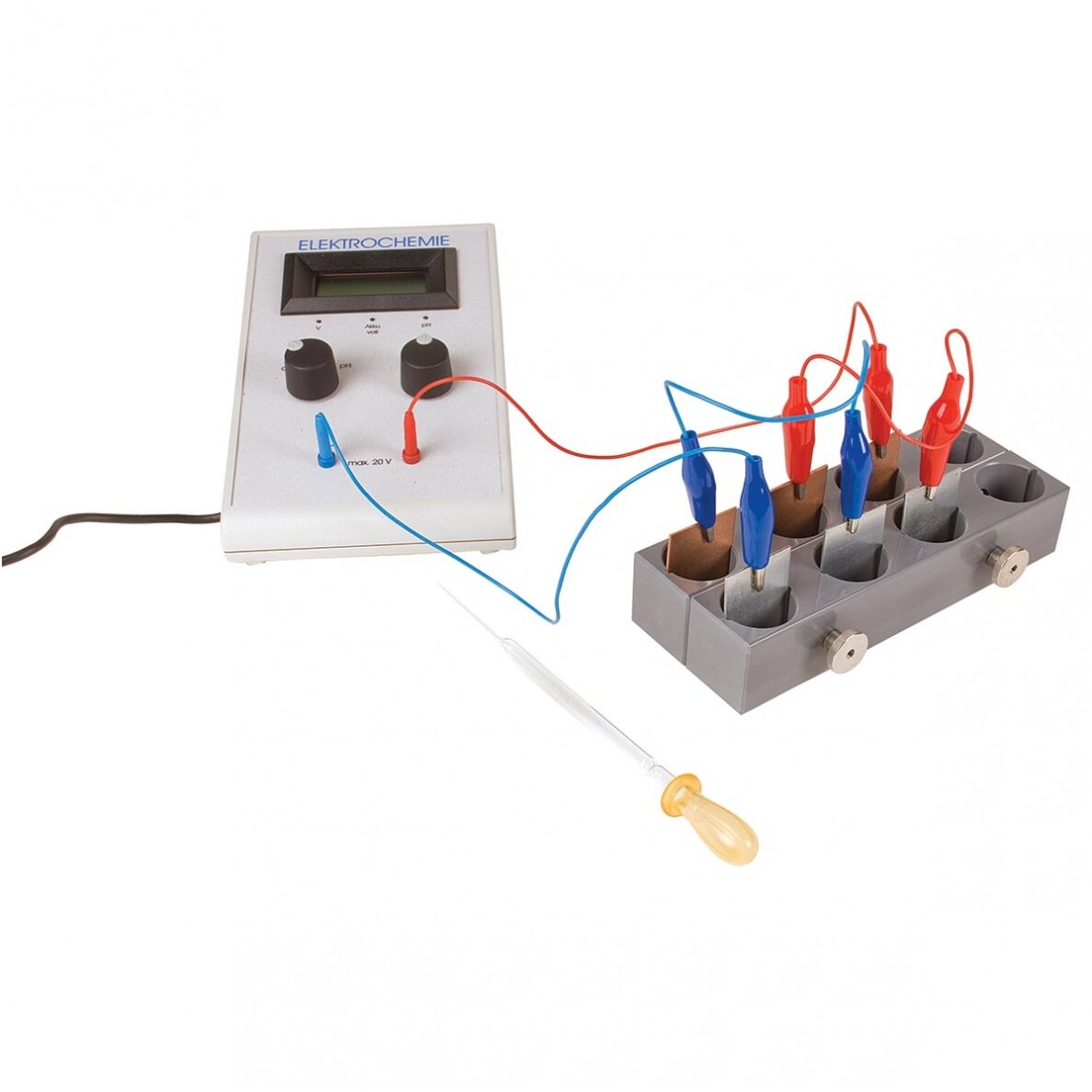

A cell block made of tough plastic, which can be unscrewed into two halves for ease of cleaning, allows four galvanic cells to be connected in parallel. A piece of filter paper stretched between the two halves of the cell acts as a diaphragm.

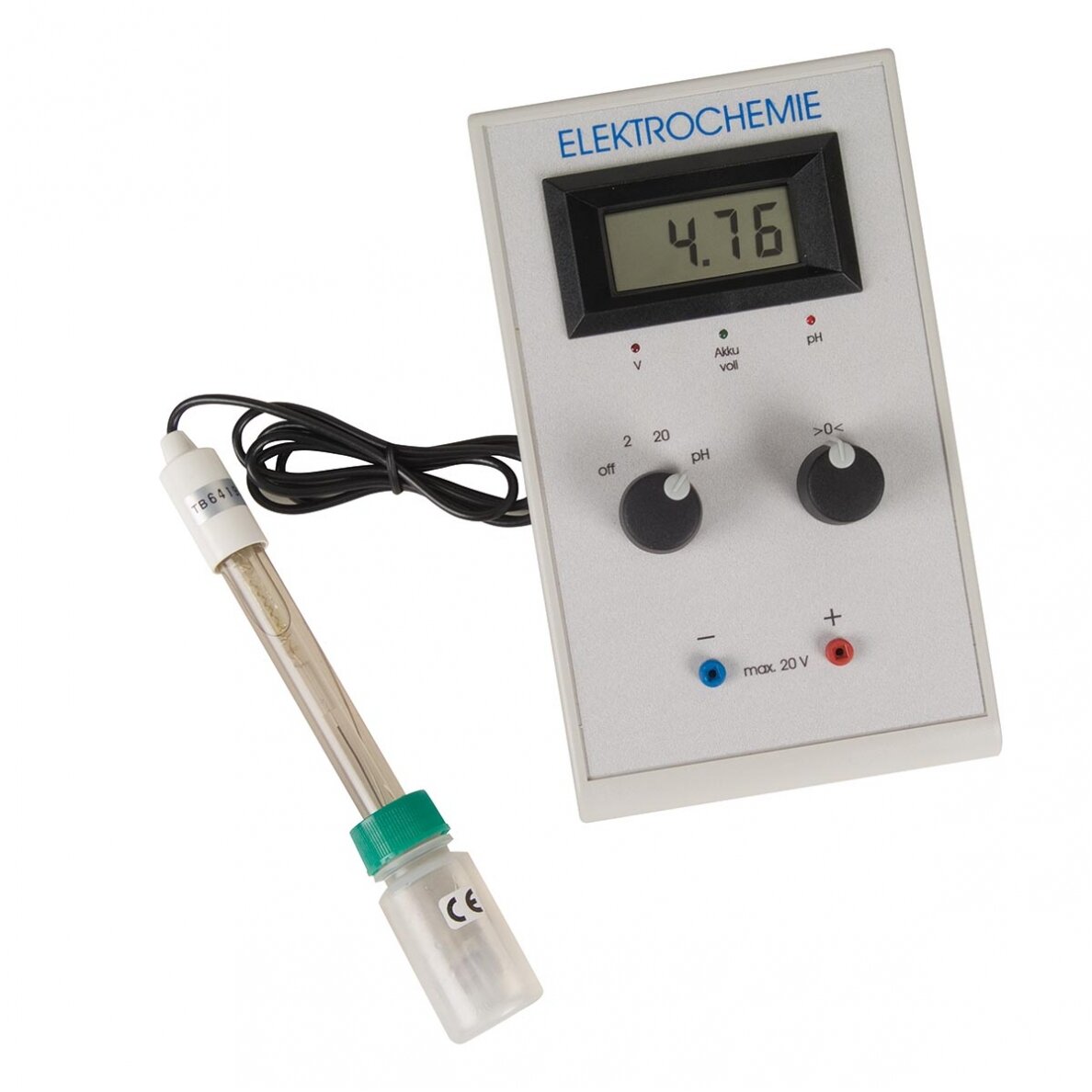

Includes a handy, high-resistance meter for measuring potential differences with very little current and measuring pH values with the help of the supplied pH measuring probe.
Measurement device:
7 segment display: 3 digit
Height: 13 mm
Voltage ranges: 2 V DC and 20 V DC
Resolution: 1 mV
Input resistance: 200 MΩ
pH measuring range: 0,0 … 14,0 pH
Power supply: Plug-in power supply, 12 V/0.5 A (as supplied) or 9-V block battery
Dimensions: approx. 175x105x55 mm³

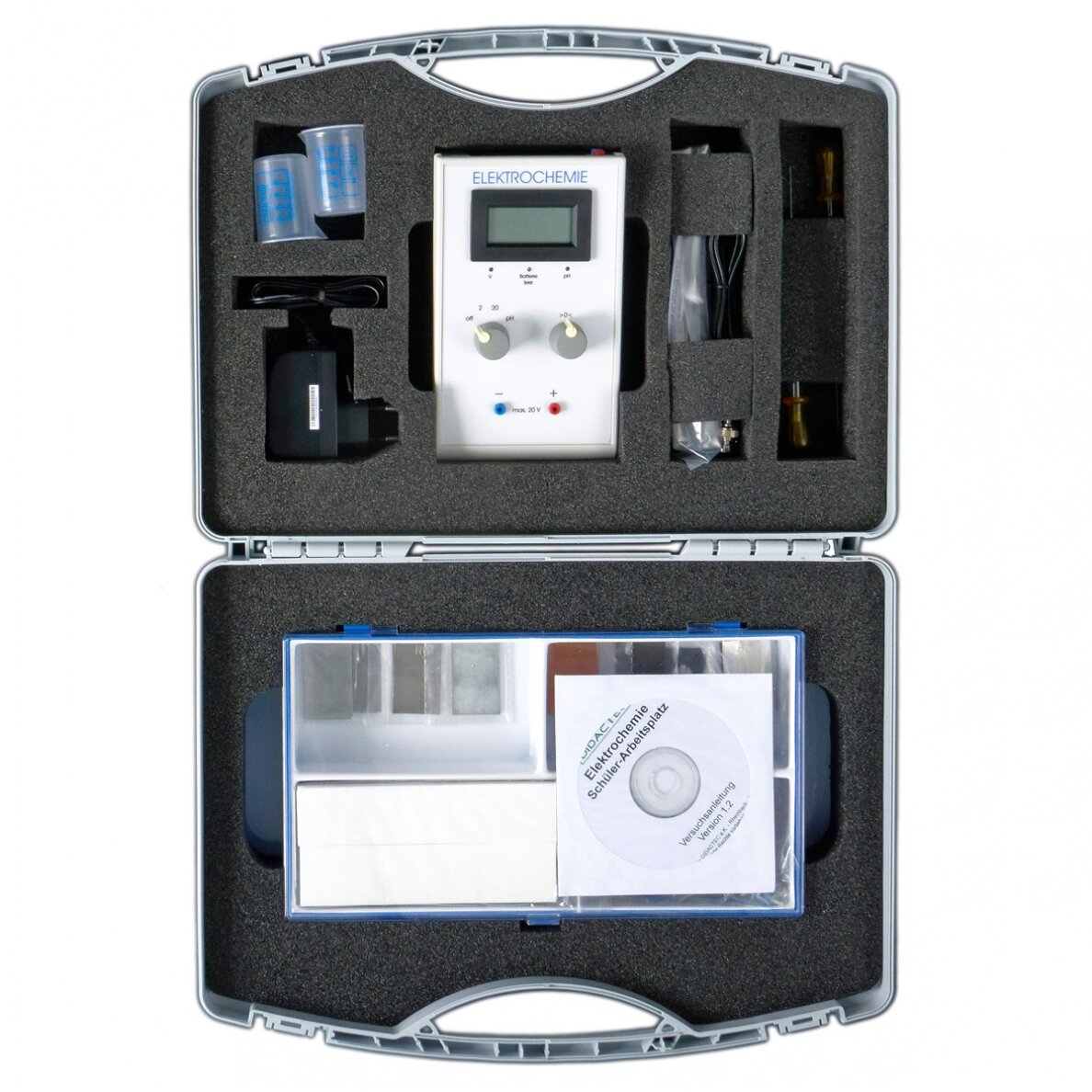

Contents:
1 foam lined case
1 measurement device
1 pH combined electrode with BNC plug
1 plug-in power unit 12 V DC / 500 mA for 115/230 V AC mains voltage
1 Cell block, fitted with filter paper
2 Ag-electrodes, 42x28 mm²
1 Pt-electrode, 42x28 mm²
4 Zn-electrodes, 42x28 mm²
2 Fe-electrodes, 42x28 mm²
2 C-electrodes, 42x28 mm²
2 AI-electrodes, 42x28 mm²
2 Ni-electrodes, 42x28 mm²
4 Cu-electrodes, 42x28 mm²
1 Mg-electrode, 42x28 mm²
1 set of filter papers (50 units)
1 Sanding block for cleaning electrodes
3 experiment cables with crocodile clips, 20 cm, red
3 experiment cables with crocodile clips, 20 cm, blue
1 experiment cable with crocodile clip and 2 mm plug, 30 cm, red
1 experiment cable with crocodile clip and 2 mm plug, 30 cm, blue
2 graduated plastic beakers, 25 ml
2 drip pipettes with suction bulbs
1 Storage box with loose insert
1 operating instructions on CD-ROM
