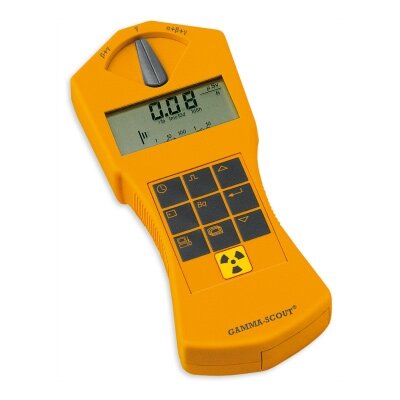

Geigerio skaitiklis

Versatile, easy to use and compact precision instrument for measuring α-, β- and γ-radiation. With filter selection switch at the front of the Geiger-Müller counter tube for filtering out types of radiation (γ/β, γ/α/β or γ only), large display and integrated USB interface. Including USB cable, Windows software, and operating instructions.

The following functions and operating modes are available for measurement:

• Standard mode for displaying the current radiation level. Display of the equivalent dose as a numerical value and as a bar chart and display of the time until a selected cumulative dose limit is reached (default 5 μSv/h). Also equipped with variable acoustic and optical warning threshold signal and display of average radiation from previous day.
• Pulse counting either permanent or with variable gate time. Gate time adjustable in seconds, minute or hours. Additional optional acoustic count indication.
• Count rate measurement. The pulses registered are measured successively and converted into a count rate (number of pulses per second).
• Integrated display of date and time for correct recording of measured radiation.
• The number of pulses registered is stored in the internal memory. This facilitates recording e.g. of weekly values for up to 10 years.
• Computer docking station. The software enables the measured data to be evaluated and processed on an MS-Windows PC.

Specifications:

• Radiation types: α from 4 MeV, β from 0.2 MeV, γ from 0.02 MeV
• Measured variables: equivalent dose in Sv/h, mSv/h, μSv/h, pulses/s, pulses/variable time interval
• Display: LCD, 4 digit, numerical with display of measured variable, quasi analogue bar chart, operating mode indicators
• Radiation detector: End window Geiger-Müller counter tube, stainless steel housing with neon-halogen filling
• Measuring length: 38.1 mm
• Measuring diameter: 9.1 mm
• Mica window: 1.5 – 2 mg/cm²
• Gamma sensitivity: 114 pulses/min for 60Co radiation = 1 μSv/h in background radiation energy band
• Background rate: 10 pulses per minute approx.
• Internal memory: 2 kilobytes
• Battery life: 3 years approx.
• Dimensions: 163x72x30 mm³ approx.
• Weight: 155 g approx.
