Jutikliai „Mechaniniai svyravimai“ (115 V, 50/60 Hz)
Jutikliai „Mechaniniai svyravimai“ (115 V, 50/60 Hz)
Kodas: 3B Scientific 1012851Kaina 31811 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1012851 [U61023-115] Svoris 0.7 kg Ženklas 3B Scientific

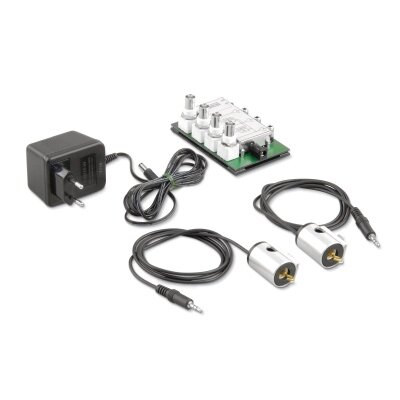

Sensors “Mechanical Oscillations” (115 V, 50/60 Hz)Set incorporating two dynamometers and an amplifier board for recording and analysing mechanical oscillations using a standard oscilloscope. The dynamometers can be fitted to 10-mm diameter stands or the SW tie bar in order to measure dynamic forces along their axes. The amplifier board converts signals from both dynamometers so that they can be recorded and also evaluates the phase differences between both oscillation signals, outputting them as a DC signal.
If the MEC amplifier board is connected to the 2 x 50 MHz USB oscilloscope (1017264), it is possible to perform detailed analysis and evaluation of measured signals using the oscilloscope software on a PC.
Dynamometers:
Maximum force: 5 N
Frequency range: 0.3–200 Hz
Connectors: 3.5-mm jack plugs
Dimensions: 52x37x26 mm
MEC amplifier board:
Input sockets: 3.5-mm jack sockets
Output sockets: BNC
Dimensions: 65x100x40 mm
Contents:
2 Dynamometers
1 MEC amplifier board
1 Power supply, 12 V AC, 700 mA
2 Cables HF
