Kintamo induktyvumo ritė
Kintamo induktyvumo ritė
Kodas: 3B Scientific 1003194Kaina 40196 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1003194 [U21903] Svoris5.847 kg Variable Inductance Coil
No investigation into electromagnetic theory is complete without measuring the inductance and self-inductance of a current-carrying coil (depending on the insertion of an iron core) and exploring AC circuits.

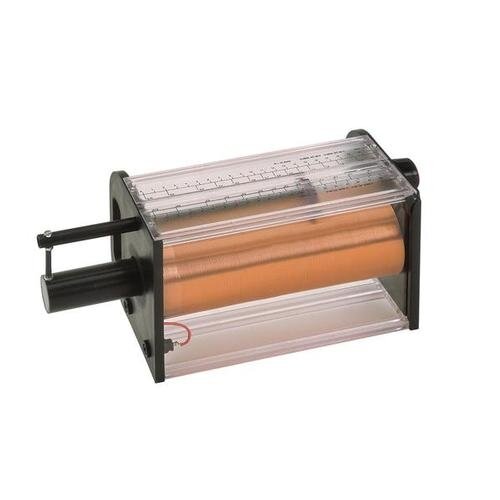

Our copper wire coil features a shock-resistant plastic casing with lifting handles, a coated iron core mounted on a worm screw for moving in and out of the coil, and a scale printed in cm for reading the length of core inserted into the coil.
Number of windings: 3000
Max. permissible voltage: 30 V AC, 60 V DC
Max. permissible current: 2 A
Inductance: continuously adjustable from 0.15 to 1.4 H, for current of approximately 1 A
Resistance: 12.5 O
Connections: via 4-mm safety plugs
Dimensions: 265 mm x 145 mm x 130 mm
Weight: 6.2 kg
