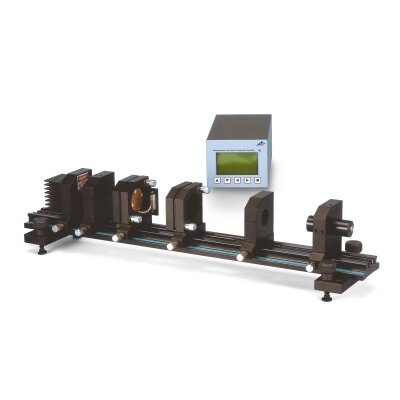

    Lazerinio diodo tvarkyklė ir temperatūrinis valdiklis (nuolatinis ir impulsinis)

    Kodas: 3B Scientific 1008632
    Pasiteirauti apie prekę
    Kaina 541995 € su PVM

    Prekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Į krepšelį
    Gamintojas
    3B Scientific
    Pristatymo laikas
    3-6 savaitės

  • Informacija apie prekę
    Prekės kodas 1008632 [U14021]
    Svoris 1.2 kg
    Ženklas KOMLAS Optische Komponenten

    Laser Diode Driver and Temperature Controller (cw and pulsed)
    • Precise current-controlled continuous wave and pulse-type laser driver
    • Two TEC drivers with PID controllers
    • Digital and analog modulation inputs
    • Multiple safety circuits
    • Stored configuration (EEPROM)
    • Very low power dissipation due to bias voltage control in cw-mode
    • Digital control using isolated RS232 serial interface

    The diode laser driver and temperature controller is a highly precise, safe and cost-efficient operating solution for continuous wave (cw) and pulsed diode lasers.
    The power supply unit is designed for current-stabilized control of the laser diode and is also equipped with a control unit for laser diode’s controlling optical beam power in cw-mode by means of the integrated photodiode input.
    In pulsed mode the laser diode can be operated with the freely configurable built-in oscillator or externally using the modulation input.
    The temperature controllers are designed as PID controllers and configured for standard operation with NTC and Pt100 sensors. The use of silicon temperature sensors or other types is equally possible simply by altering the software configuration.

    Laser:
    Laser current range: 0...2500 mA
    Laser current resolution: 1 mA
    Laser current accuracy: < 1 mA
    Laser current noise: < 60 µs
    Pulse rise time: < 10 µs
    Pulse fall time: < 5 µs
    Voltage range: 1.2...5 V
    Current limit: adjustable between 0...2500 mA
    External digital modulation input: TTL
    TEC (Thermo-electric cooler) Driver
    Peltier current: max. -4...+4 A
    Peltier voltage: max. 15 V
    Peltier current limit: adjustable between 0...4 A
    Peltier current resolution: 1 mA
    Temperature control accuracy: < 10 mK

    General specs
    Over-temperature protection: for driver and laser
    Supply voltage: 24 V / 3 A DC
    Mains voltage: 100 up to 240 V AC
    Dimensions (H×W×L): 85×105×210 mm
