Pradžia/Tikslieji mokslai/Fizika
  •   Lorenco variklio modelis
      Lorenco variklio modelis 1

    Lorenco variklio modelis

    Kodas: 3B Scientific 1002662
    Pasiteirauti apie prekę
    Kaina 17158 € su PVM

    Prekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Į krepšelį
    Gamintojas
    3B Scientific
    Pristatymo laikas
    3-6 savaitės

  •

    Informacija apie prekę
    Prekės kodas 1002662 [U10372]
    Svoris
    		 0.145 kg

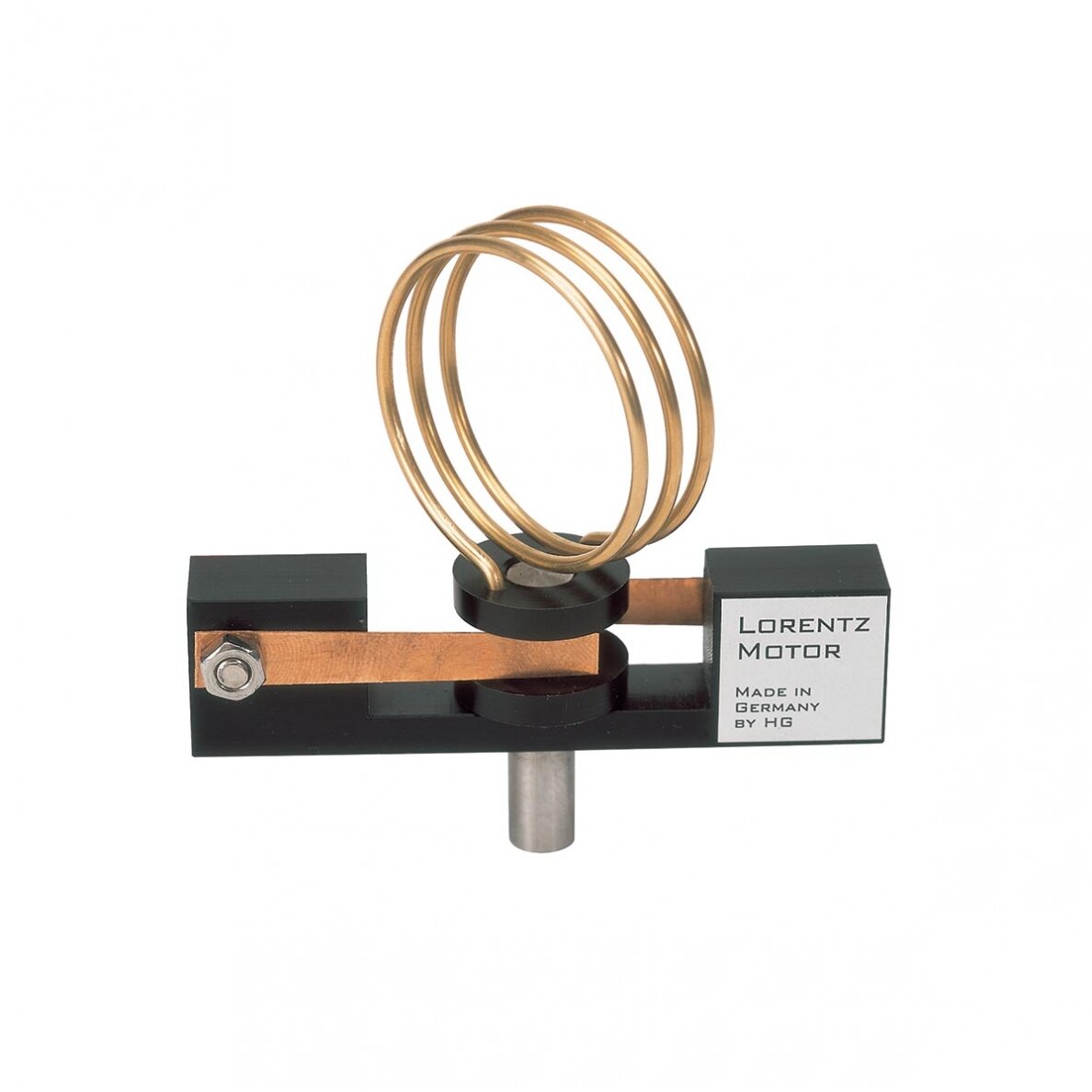

    Lorentz Motor

    Comprising a motor armature without an iron core, this device is intended for installation inside the permanent magnet with adjustable pole spacing (P 1002660 ). The coil is rotated purely by the Lorentz force, its direction of rotation depending on the direction of the current.

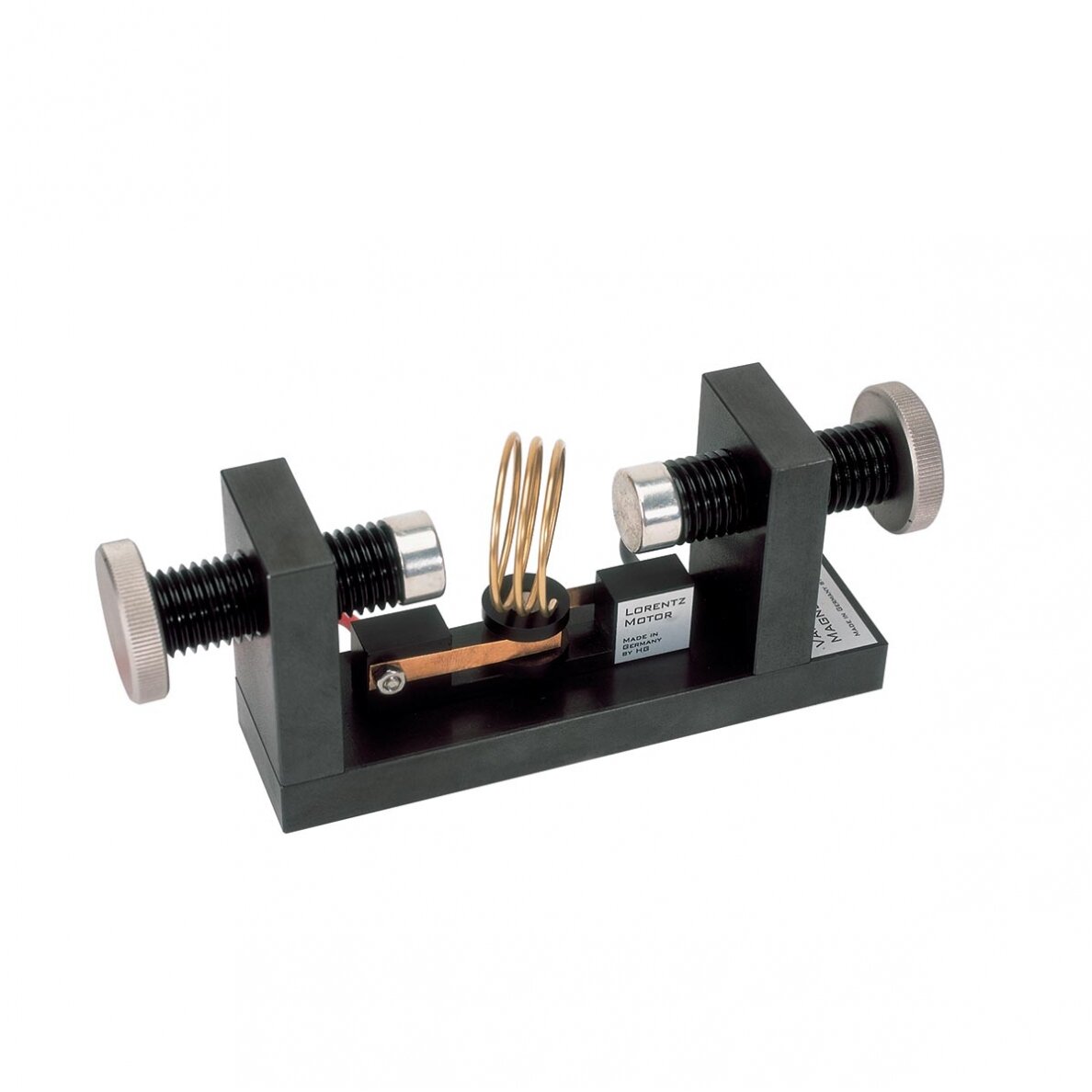

    The Lorentz Motor is an armature that is intended for use with the Permanent Magnet.

    After a little kick start, the coil is rotated purely by the Lorentz force and its direction of rotation depends on the direction of the current.

    additionally required:
    P1002660 Permanent magnet with adjustable pole pitch
    P1003312 DC power supply unit 230V (alternatively P1003311 DC power supply unit 115V)
    The Lorentz motor is used to demonstrate Lorentz force which acts upon a currentcarrying conductor. The Lorentz motor armature consists of a coil with approx. 40 mm diameter and 3 turns. The ends of the coil are plugged into a coil mount, which can rotate freely on a shaft with an 8 mm diameter. A current can then flow continuously through the coil via the two slide contacts when the perceived axis through the coil is located almost perpendicularly to the magnetic field. The permanently attached connection leads are equipped with commercially available lab safety plugs with 4 mm diameter. In one of the leads there is also a series resistor with approx. 0.16 Ω (invisible) designed to limit the maximum motor current to such an extent as to avoid any disturbance to electronic control performed by standard power supplies.
