Mechanikos rinkinys demonstracijoms ant magnetinės lentos

The mechanics kit for whiteboard demonstrations includes more than 25 large, colored and easily distinguished components stored in a case with foam inlay. More than 30 experiments can be set up in rapid time:

• Large components ensure that experiments can be viewed from a distance
• Secure attachment is guaranteed by high-grade AlNiCo magnets
• Quick and easy configuration of experiments
• Measuring units, vector diagrams and explanations can be provided right next to the experimental configuration on the blackboard

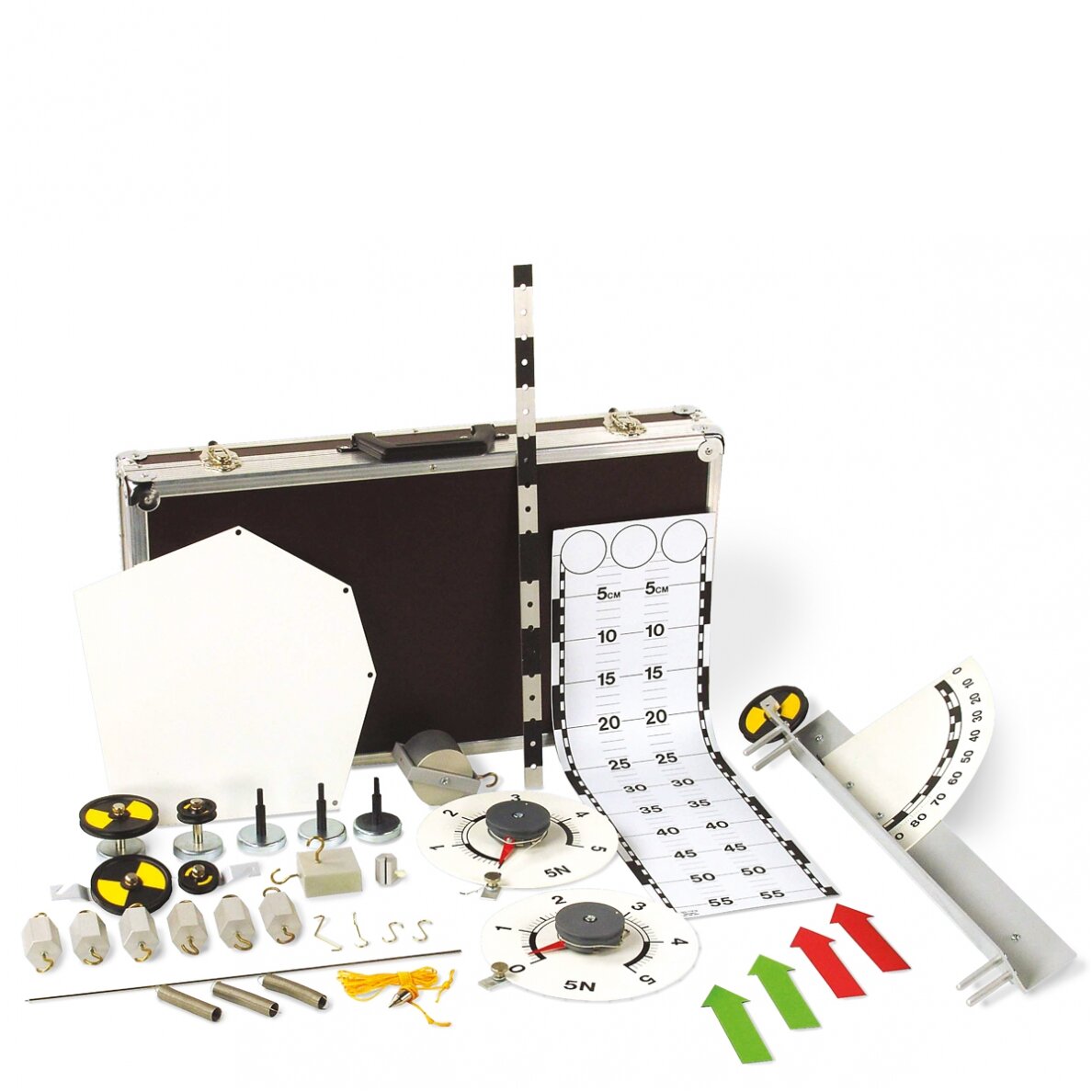

Contents:

• 1 Inclined plane with pulley and angle scale
• 1 Rolling mass, 500 g
• 1 Lever with 20 holes, 545 mm long
• 1 Pointer for lever, 400 mm long
• 1 Slotted counterweight with knurled screw, approx. 20 g
• 1 Pulley, double, 70 mm dia., 40 mm dia.
• 1 Pulley, 70 mm dia.
• 1 Pulley, 40 mm dia.
• 2 Round scale dynamometers, 5 N
• 3 Magnetic tabs with 8 mm axis
• 3 Springs with hook, k = 6.2 N/m
• 1 Dual scale on a magnetic foil, 600x180 mm²
• 4 Arrows and one equilateral triangle on a magnetic foil
• 6 Weights with 2 hooks, 100 g each
• 1 Friction block
• 1 Set of nylon cords
• 1 Center-of-gravity plate
• 1 Plumb
• 3 Rubber grommets
• 3 Brass hook
• 1 Brass clip
• 1 Storage case
• 1 Manual

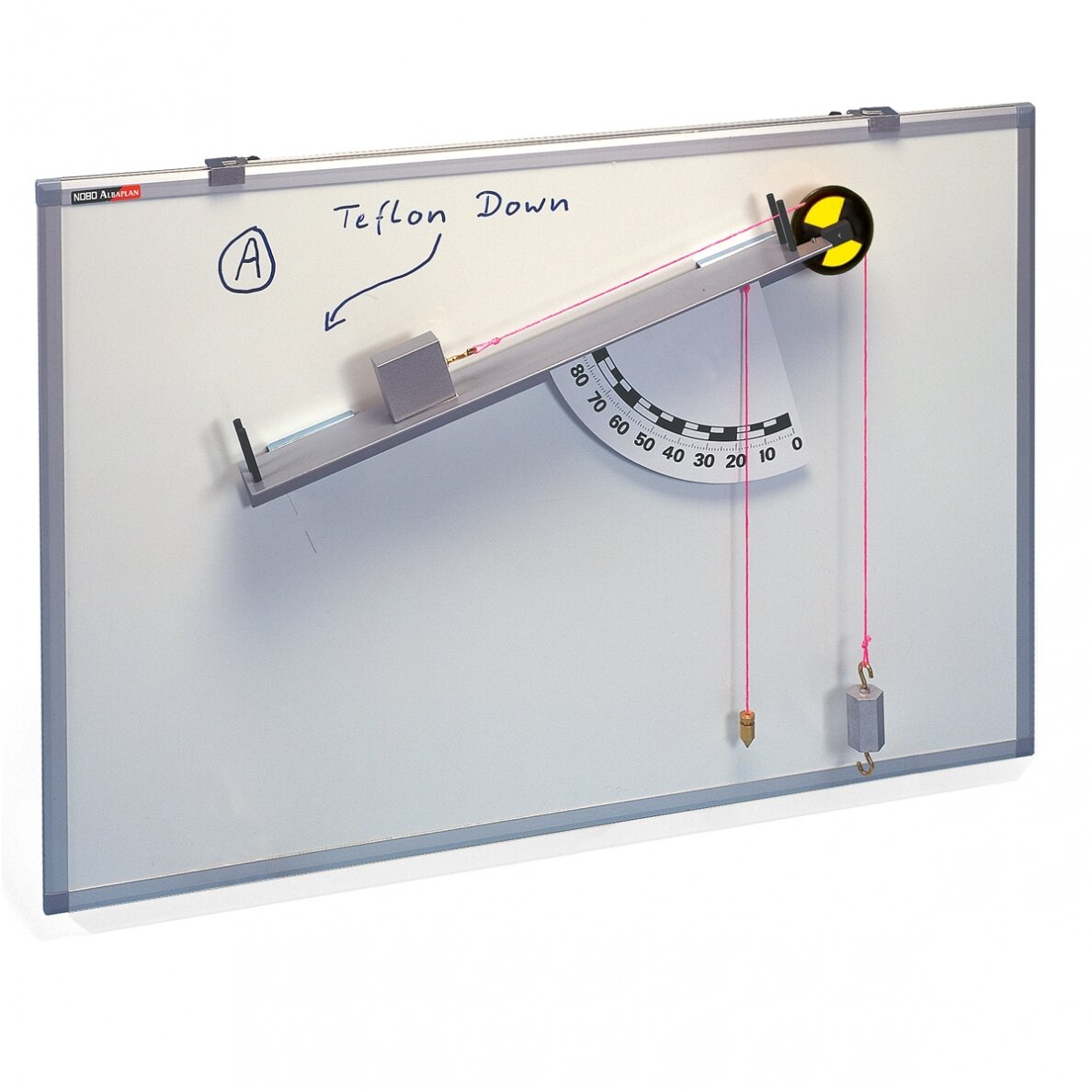

• Inclined plane

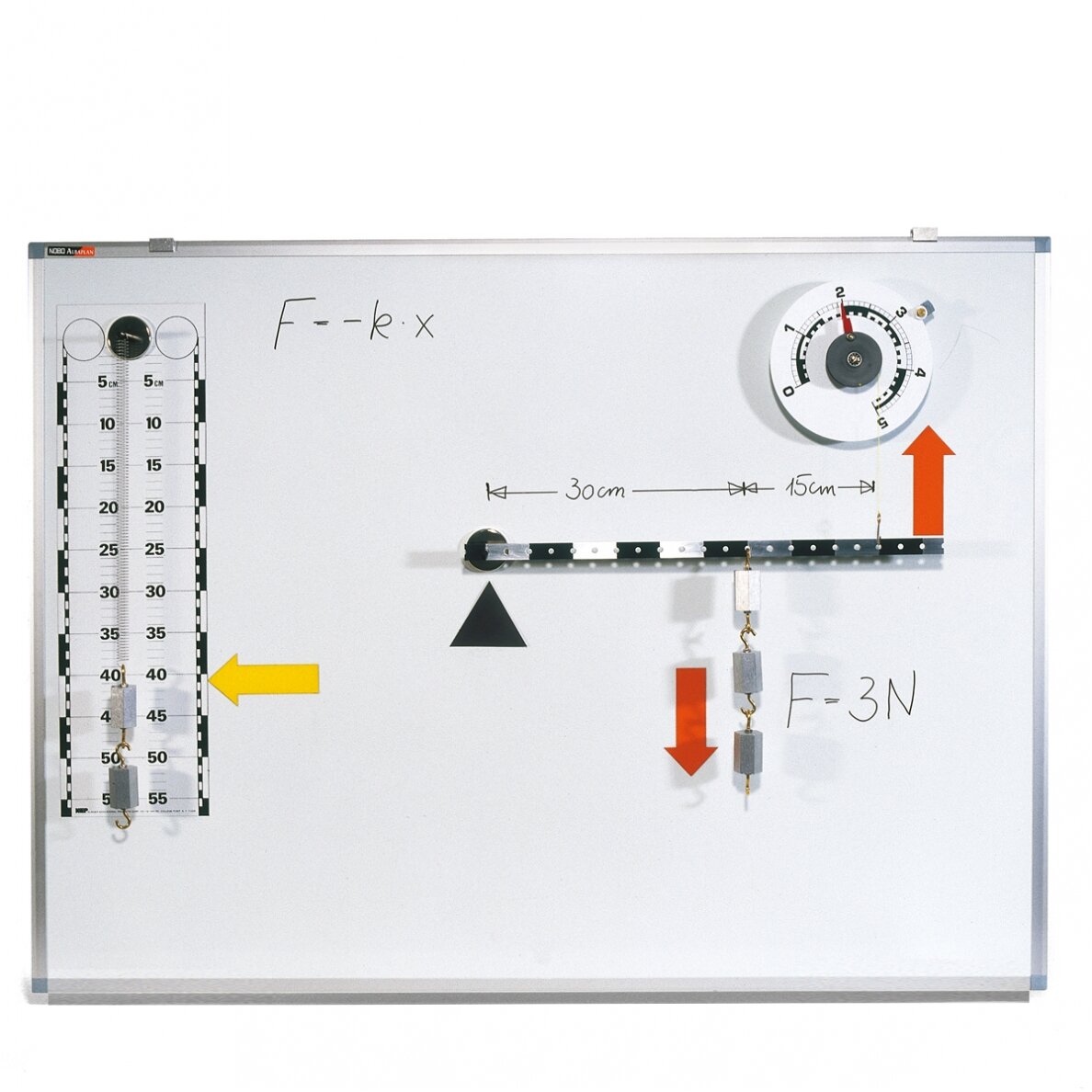

• Lever laws
• Torques and forces
• Forces acting on a lever arm
• Force as a vector
• Pendulum motion
• Physical pendulum
• Fixed and movable pulleys
• Block and tackle
• Hooke’s law
• Coupled resonance
• Center of gravity
• Friction
