Mechaniniai virpesiai ir bangos - eksperimentų rinkinys (230 V, 50/60 Hz)
Mechaniniai virpesiai ir bangos - eksperimentų rinkinys (230 V, 50/60 Hz)
Kodas: 3B Scientific 1016652Kaina 85450 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1016652 [U61020-230] Svoris 5.9 kg Išmatavimai 42.7 x 31.2 x 7.5 cm Ženklas 3B Scientific
SEK Mechanical Oscillations and Waves (230 V, 50/60 Hz)Note: The 1018476 SEK Mechanical Oscillations and Waves is for operation with a mains voltage of 115 V (±10%), and the 1016652 set is for operation with a mains voltage of 230 V (±10%).

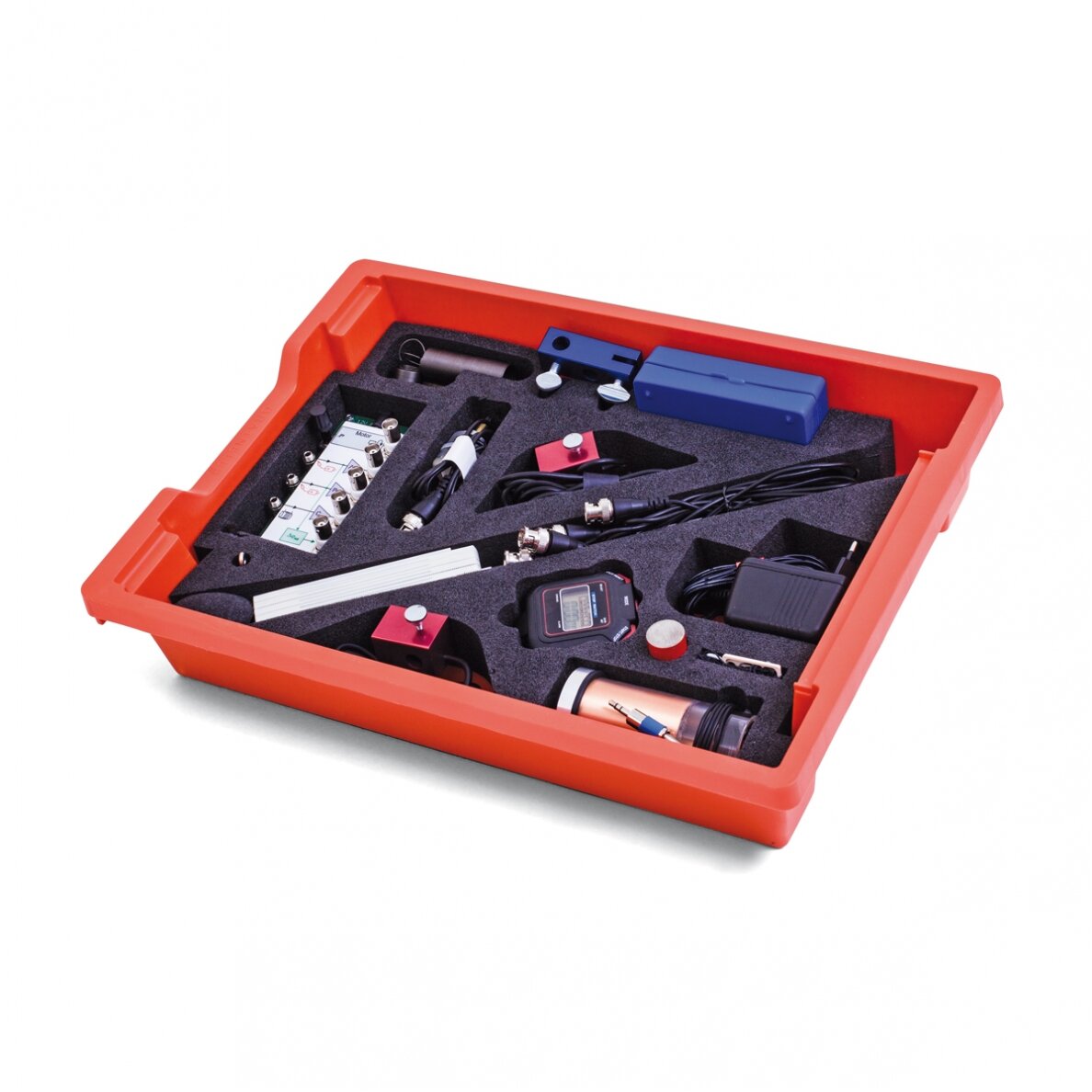

Large equipment set for carrying out 23 fundamental experiments on the properties of mechanical oscillations and waves. Stored in a tough Gratnell tray with foam inlay featuring recesses moulded to the shape of the apparatus and covered by a transparent lid. Includes CD with experiment instructions.

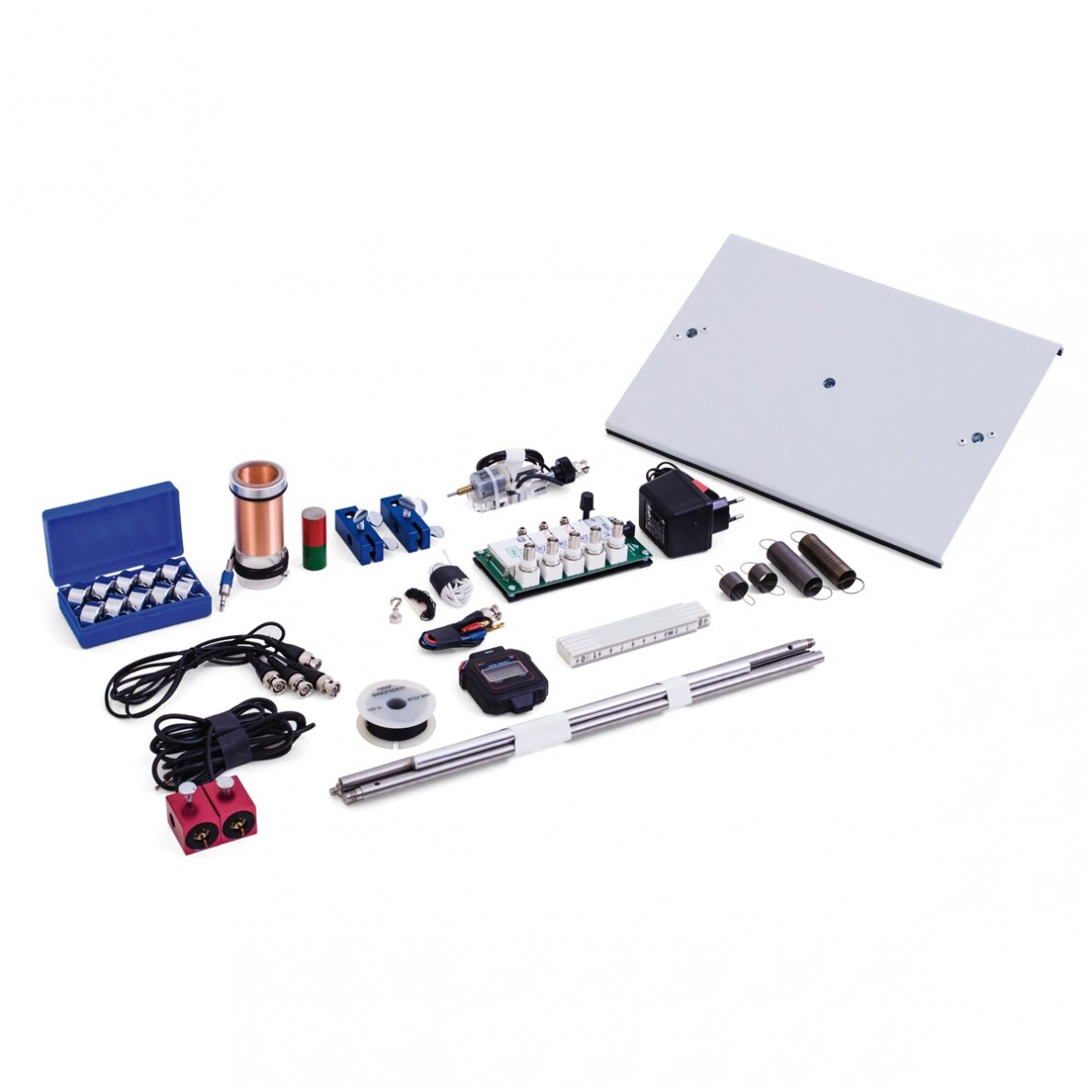

Contents:
1 MEC control unit
1 Plug-in power supply
2 Dynamic force sensors
1 Eccentric axle motor
1 Induction coil
1 Stopwatch
4 Coil springs
1 Set of 10 weights, 50 g
1 Base plate
1 Cross-strut
2 Stand rods with external threads
2 Stand rods with external and internal threads
2 Double clamps
1 Magnetic hooks
1 Bar magnet
1 Rubber cord
1 Roll of twine
1 Thread eyelet
1 Squirrel cage ring
1 Ruler 2 BNC cable, 1 m
1 BNC/4-mm cable
Includes instruction for 23 experiments on mechanical oscillations and waves
- Determining spring constants (2x)
- Oscillations of a spring pendulum *
- Oscillations of two “identical” spring pendulums * / **
- In-phase and 180° out-of-phase oscillations of two “identical” spring pendulums * / **
- Excitation of a motionless spring pendulum by a moving one * / **
- Superposition of the oscillations of two spring pendulums * / **
- Spring pendulums connected in line * / **
- Spring pendulums connected parallel to one another * / **
- Intrinsic oscillation of a spring pendulum *
- Types of oscillation for a coil spring pendulum *

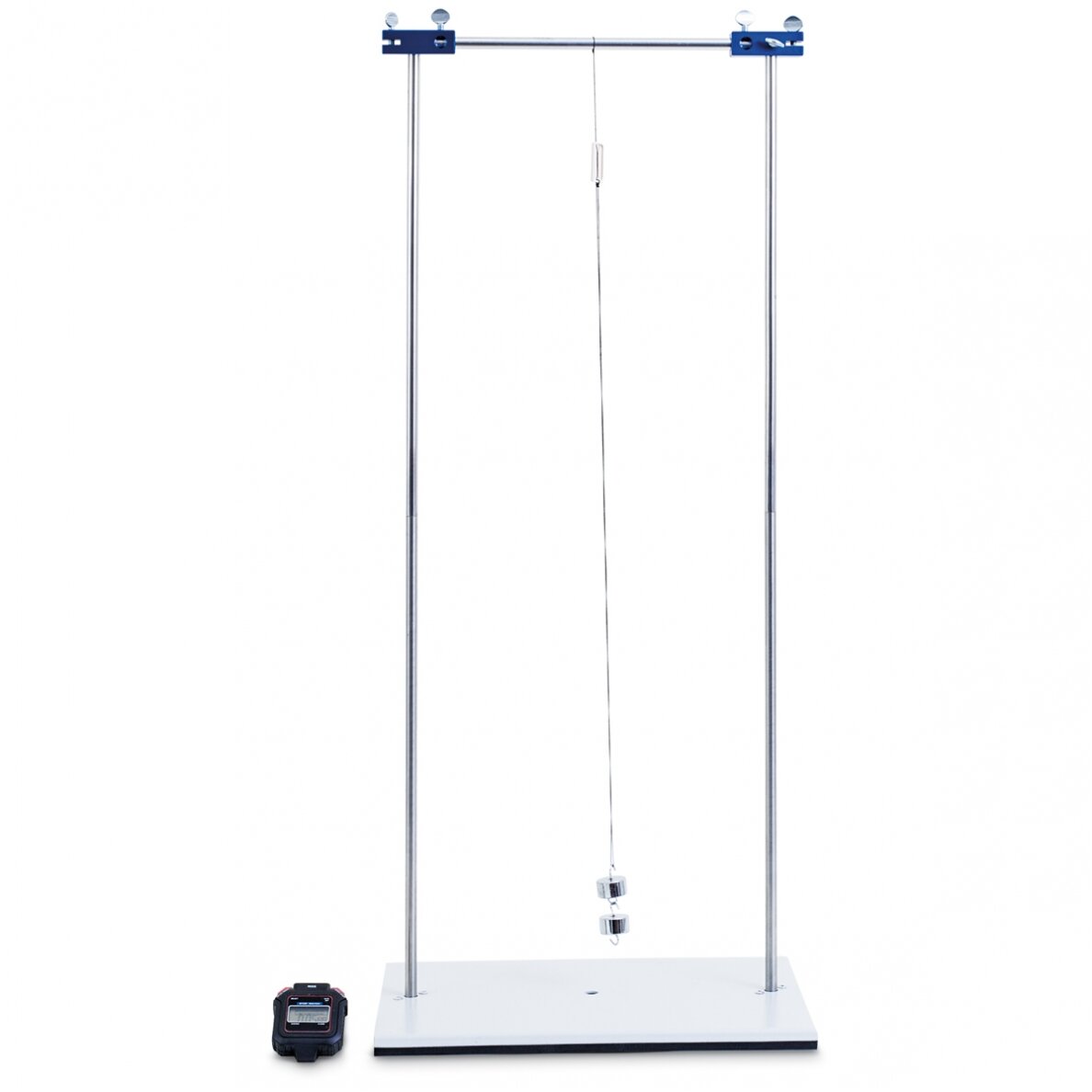

- String pendulums (2x)
- Seconds pendulums
- Galileo's interrupted pendulum
- Damped oscillations of string pendulums (2x) *

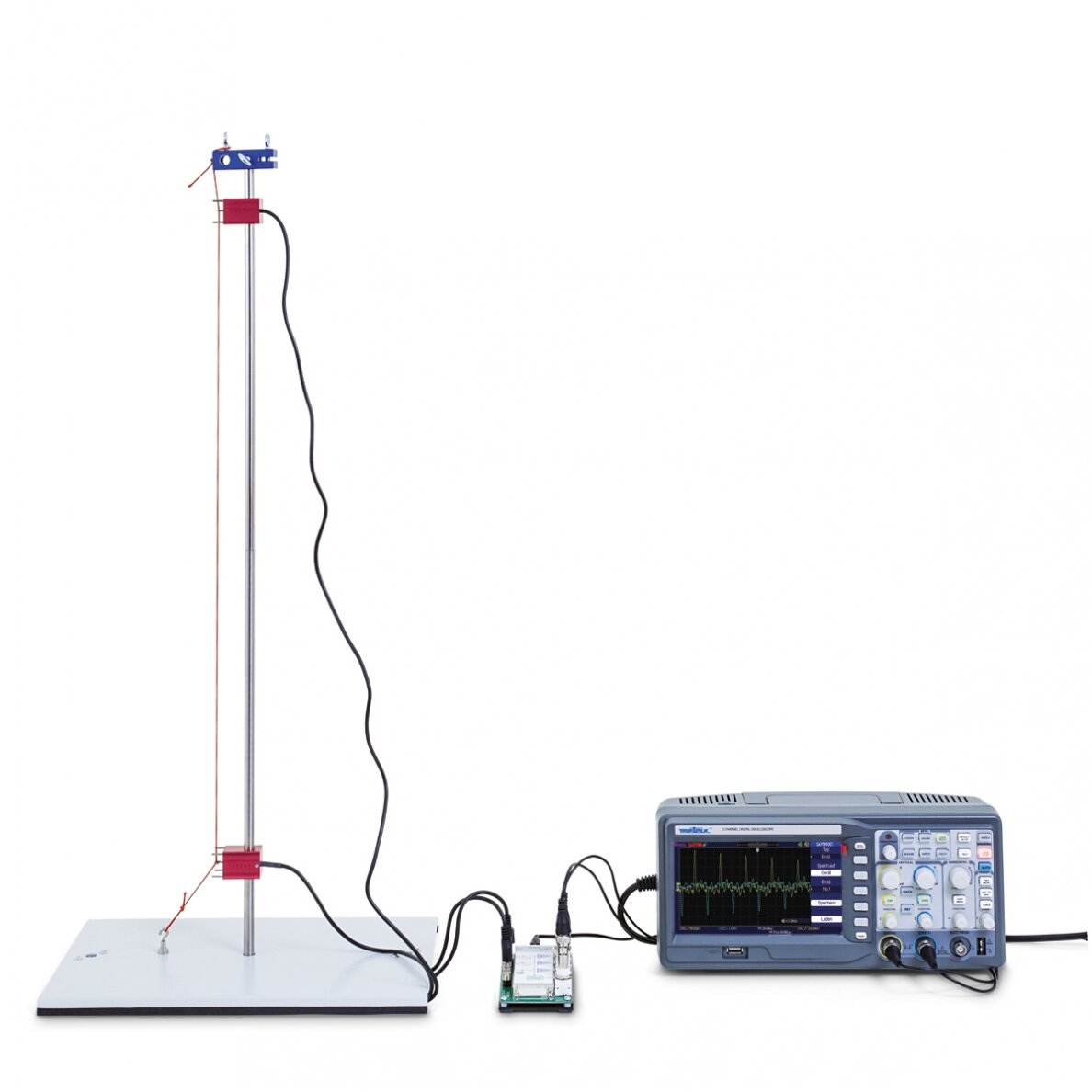

- Standing waves along a rope (2x) *
- Reflection of waves along a rope *
- Speed of propagation of waves along a rope (2x) *
- Oscillation of strings *
Dual-channel oscilloscope (for experiments marked *
e.g. 1020857 PC Oscilloscope 2x25 MHz
Analogue Multimeter for experiments marked **)
e.g. 1013526 Analogue Multimeter Escola 30
