  •   Millikano aparatas (aliejaus lašo eksperimentas) (230 V, 50/60 Hz)

    Millikano aparatas (aliejaus lašo eksperimentas) (230 V, 50/60 Hz)

    Kodas: 3B Scientific 1018884
    Pasiteirauti apie prekę
    Kaina 247748 € su PVM

    Prekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Į krepšelį
    Gamintojas
    3B Scientific
    Pristatymo laikas
    3-6 savaitės

  • Informacija apie prekę
    Prekės kodas 1018884 [U207001-230]
    Svoris 4.3 kg
    Išmatavimai 37 x 43 x 23.5 cm

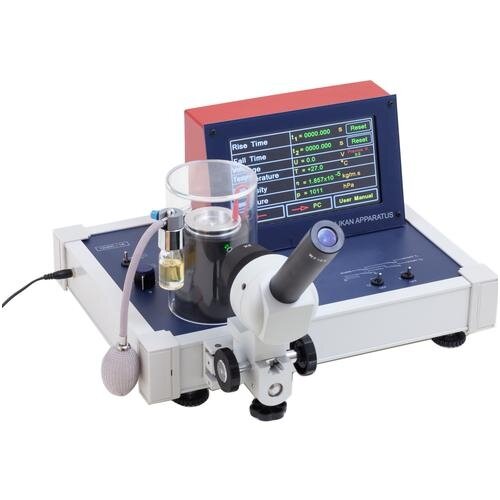

    Millikan’s Apparatus (230 V, 50/60 Hz)
    Compact apparatus for demonstrating the discrete nature (quantisation) of electric charge and for determining the elementary charge of an electron. Comprising an experiment chamber kit for assembly with plate capacitor and connected oil atomiser, lighting unit with two green LEDs, measuring microscope, voltage adjustment knob and switch to set the capacitor voltage, switch for starting and stopping rise and fall time measurements and a display unit with touch screen. Measurements can be made using the floating method or the rising and falling method. Measured rise and fall times for a charged droplet of oil are displayed on the touch screen along with the configured voltage. Parameters relevant to the evaluation of the results, temperature, viscosity and pressure are also displayed. Includes plug-in power supply, 12 VAC, 1 A.
    Dimensions (including measuring microscope).                          370 x 430 x 235 mm³
    Weight (including plug-in power supply):                                      4.3 kg approx.

    Contents:
    1 Basic apparatus with experiment chamber and display unit
    1 Measuring microscope
    1 Oil atomiser
    50 ml of oil for Millikan’s apparatus
    1 Plug-in power supply, 12 VAC, 1 A


    Experiment Topics:
    • Millikan’s experiment
    • Discrete nature (quantisation) of electric charge
    • Elementary electric charge
    • Charged oil droplets in an electric field
    • Stokes viscous drag, weight, buoyancy
    • Equilibrium voltage
    • Velocity of fall and velocity of rise


    Advantages:
    • Compact instrument with built-in measurement and display unit
    • Touch-sensitive screen for simple and ergonomic operation
    • Maintenance-free lighting unit for uniform lighting via two green LEDs
    • Built-in pressure and temperature sensor for automatically determining the relevant parameters, temperature, viscosity and pressure
