Poliarizacijos ir difrakcijos mikrobangų eksperimentų rinkinys 9,4 GHz (230 V, 50/60 Hz)
Poliarizacijos ir difrakcijos mikrobangų eksperimentų rinkinys 9,4 GHz (230 V, 50/60 Hz)
Kodas: 3B Scientific 1009951Kaina 182347 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1009951 [U8493600-230] Svoris 3.642 kg Išmatavimai 80 x 30 x 20 cm Ženklas 3B Scientific
Microwave Set 9.4 GHz (230 V, 50/60 Hz)Experiment topics:
● Straight-line propagation of microwaves
● Reflection, absorption and transmission
● Shielding from microwaves
● Experiments on polarisation
● Experiments on diffraction
● Experiments on refraction and interference
● Transmission of information
Equipment set for conducting wave optics experiments involving wavelengths in the cm range.

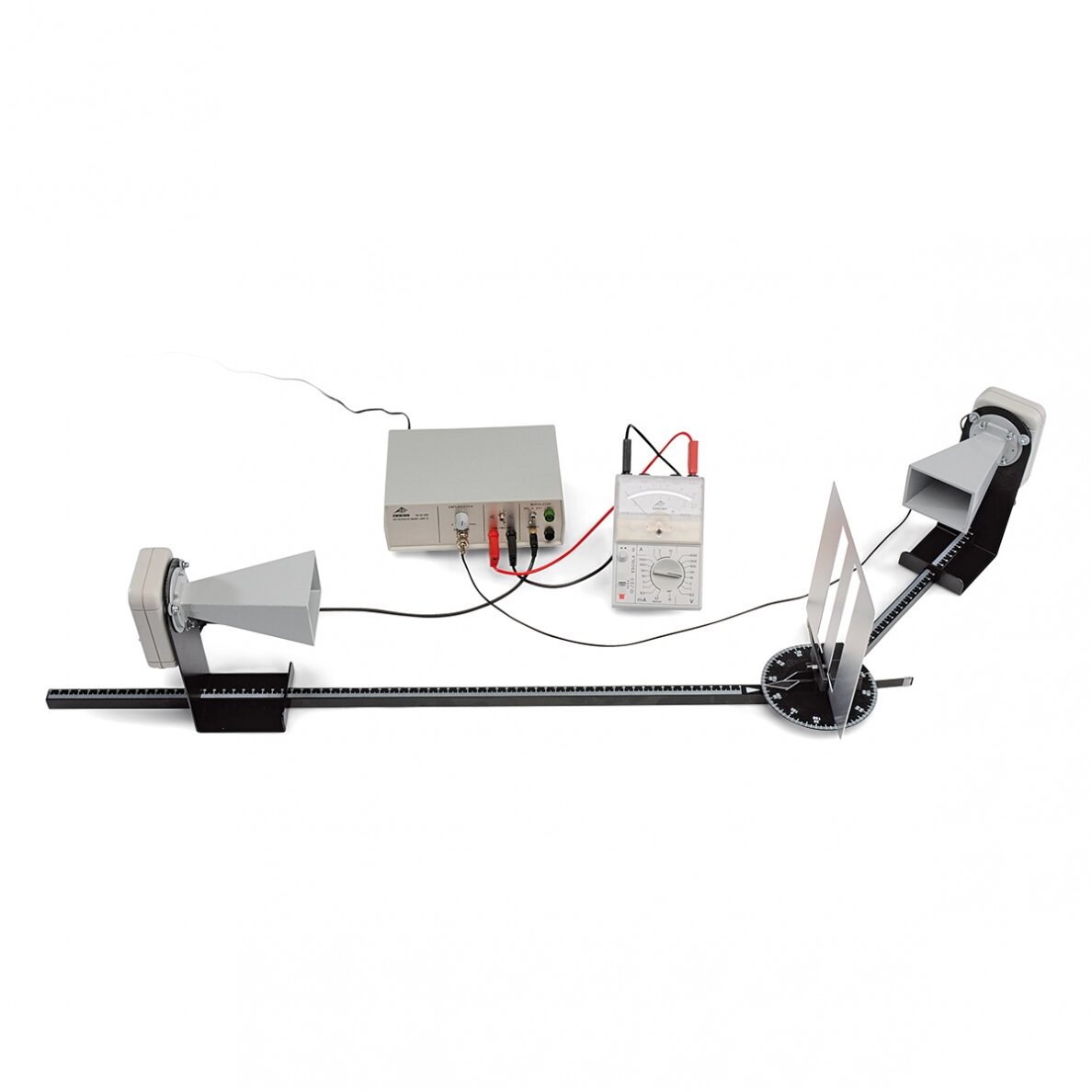

A transmitter with a horn antenna radiates a narrow beam of linearly polarised electromagnetic waves with a wavelength of about 3 cm. The direction of polarisation can be altered by rotating the antenna around the axis of propagation. To detect the waves, a horn antenna receiver and a microwave sensor are provided. A control unit converts the intensity of the signal received into a proportionally large output voltage that can be measured using a voltmeter. It is also possible to switch on an acoustic signal with a volume that is proportional to the intensity of the signal.
Oscillator frequency: 9.4 GHz (U8493600-230)
Power of transmitter: 10 – 25 mW
Internal modulator frequency: 3 kHz approx.
Acoustic signal: Switchable
External modulation: 100 Hz –20 kHz, 1 V max.
Output voltage: 10 V max.
Receiver with horn antenna: Silicon diode with resonator
Microwave sensor: Silicon diode with resonator
Dimensions of basic apparatus: approx. 170x200x75 mm³

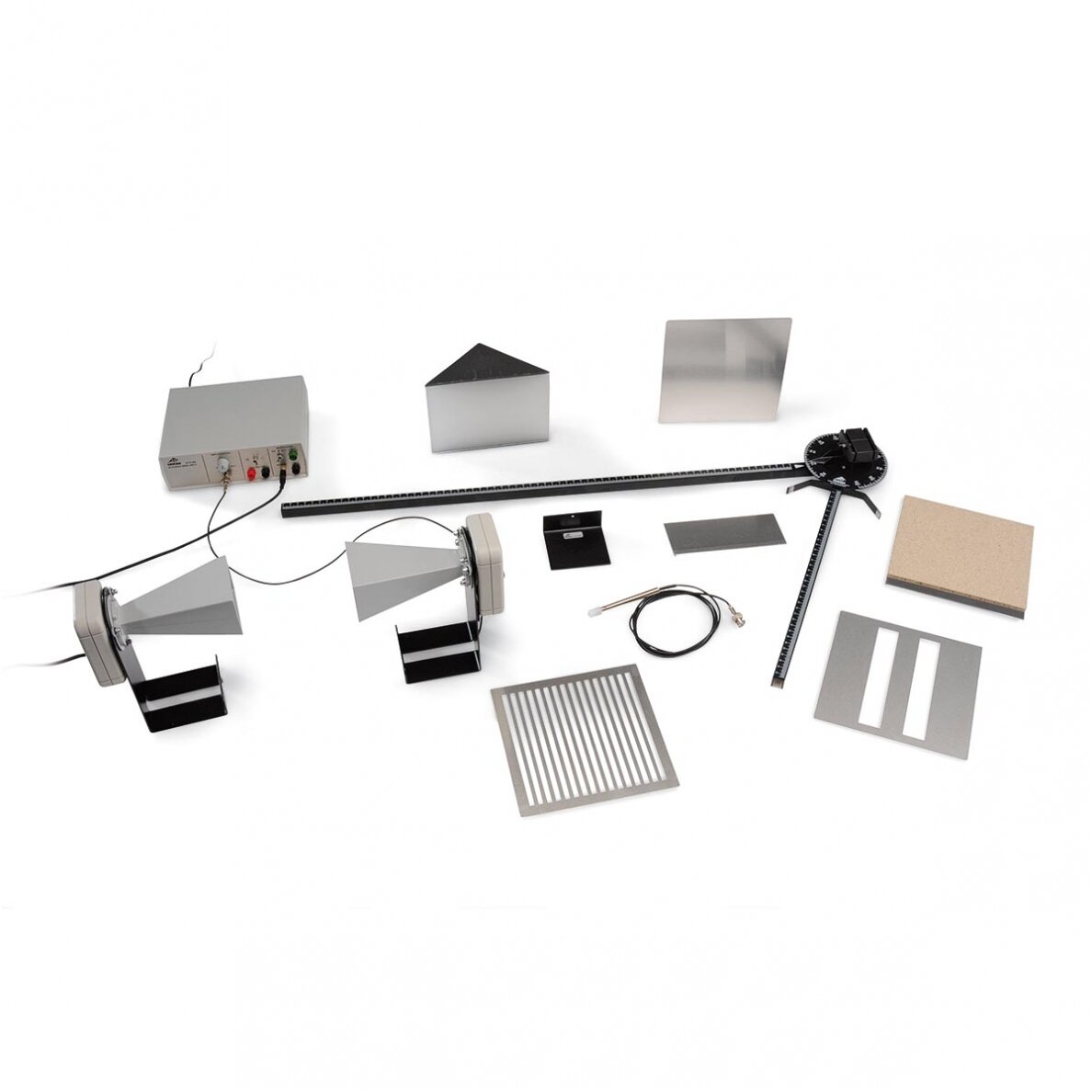

Contents:
1 Control unit
1 Transmitter with horn antenna
1 Receiver with horn antenna
1 Microwave probe
1 Mikrowave bench, 800 mm
1 Microwave bench, 400 mm with plate holder
1 Reflection plate 180x180 mm²
1 Polarisation grating, 180x180 mm²
1 Absorption plate, fibreboard, 180x180 mm²
1 Paraffin prism
1 Stand for prism
1 Plate with double slit
1 Cover plate for double slit
